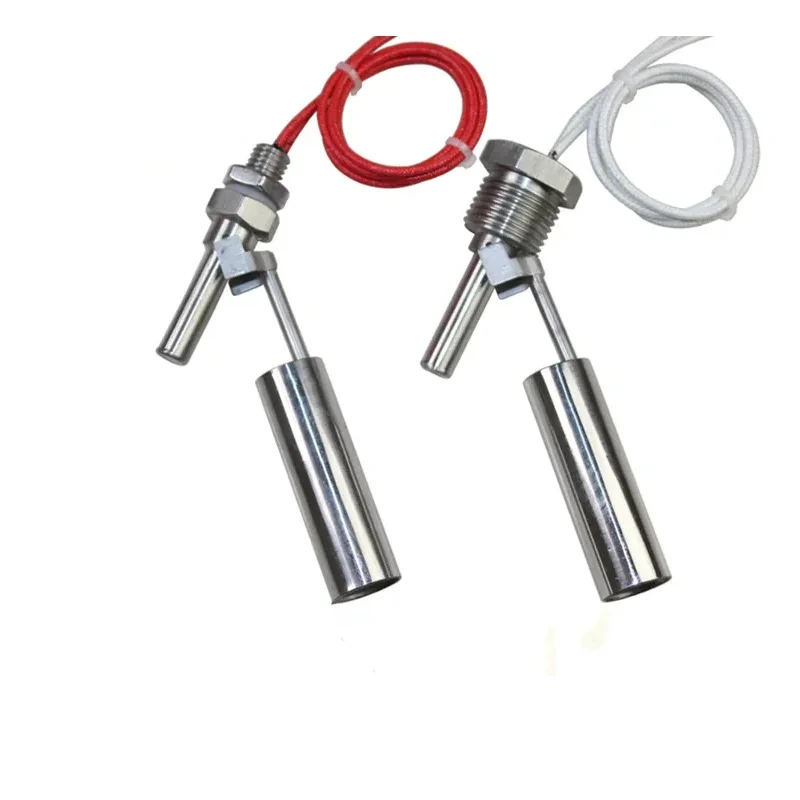

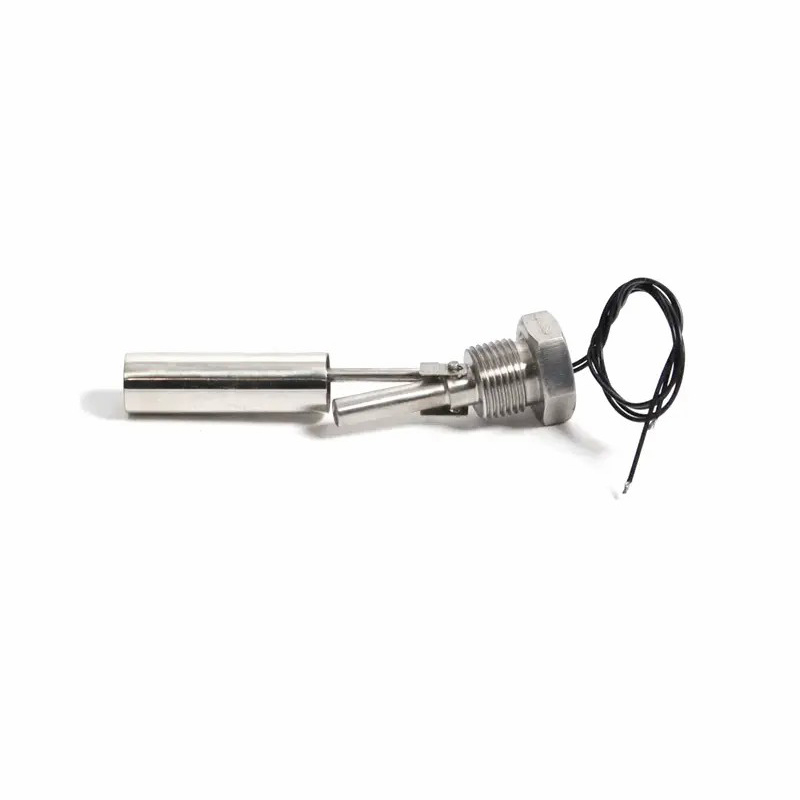

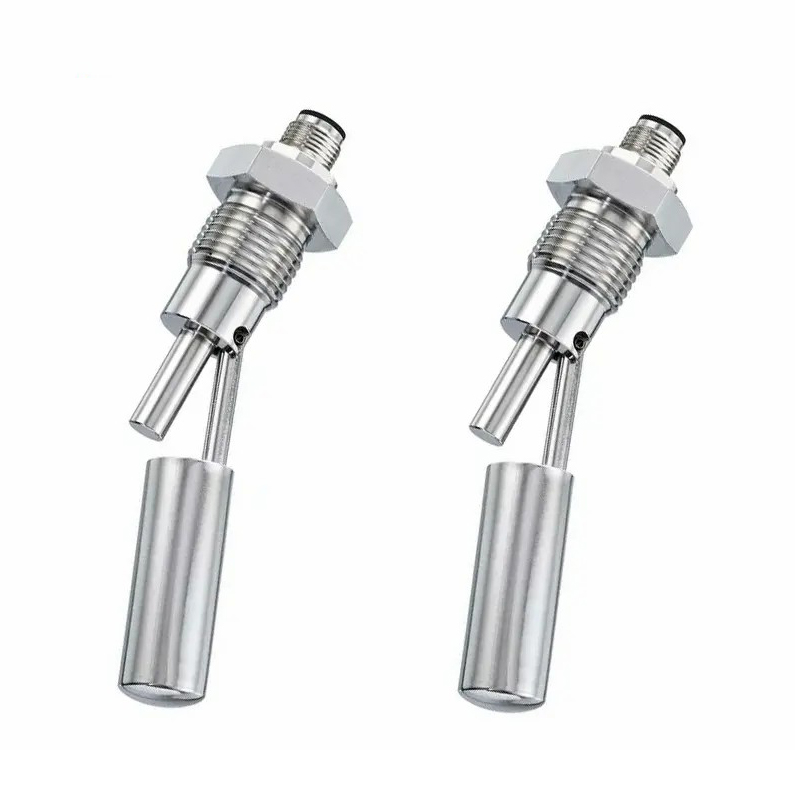

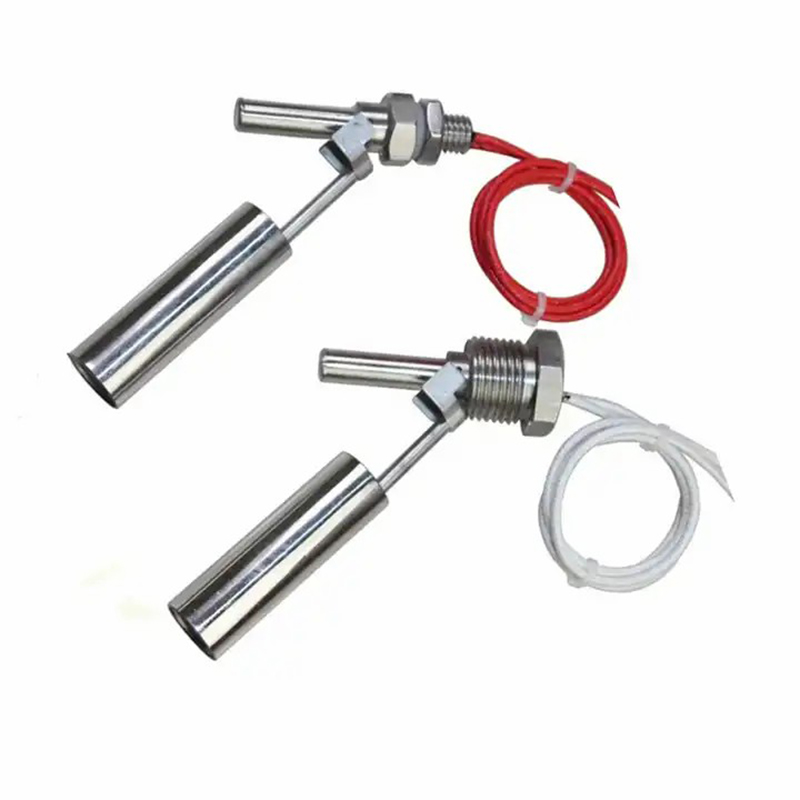

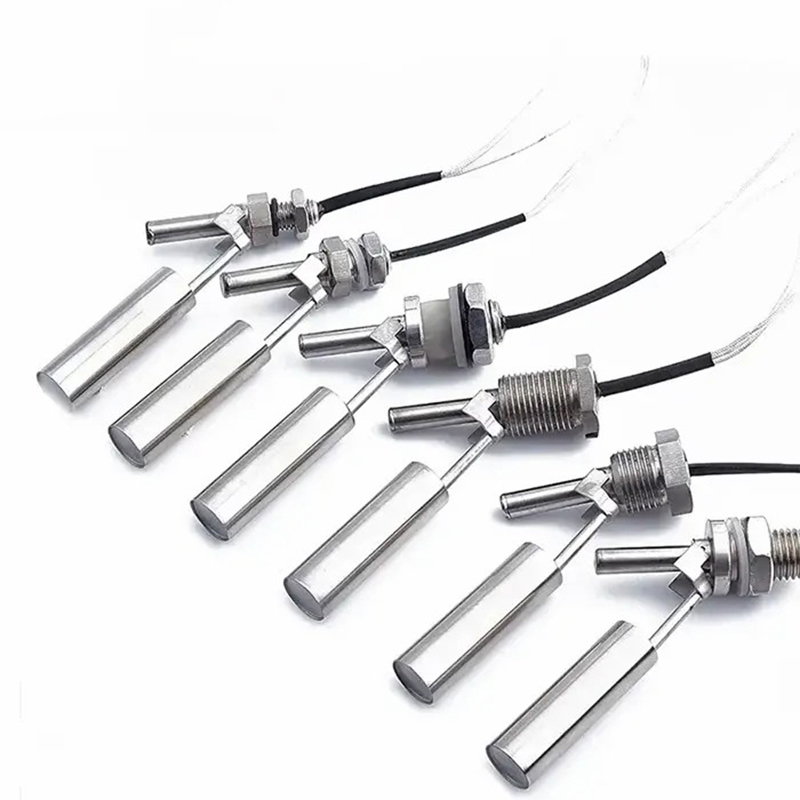

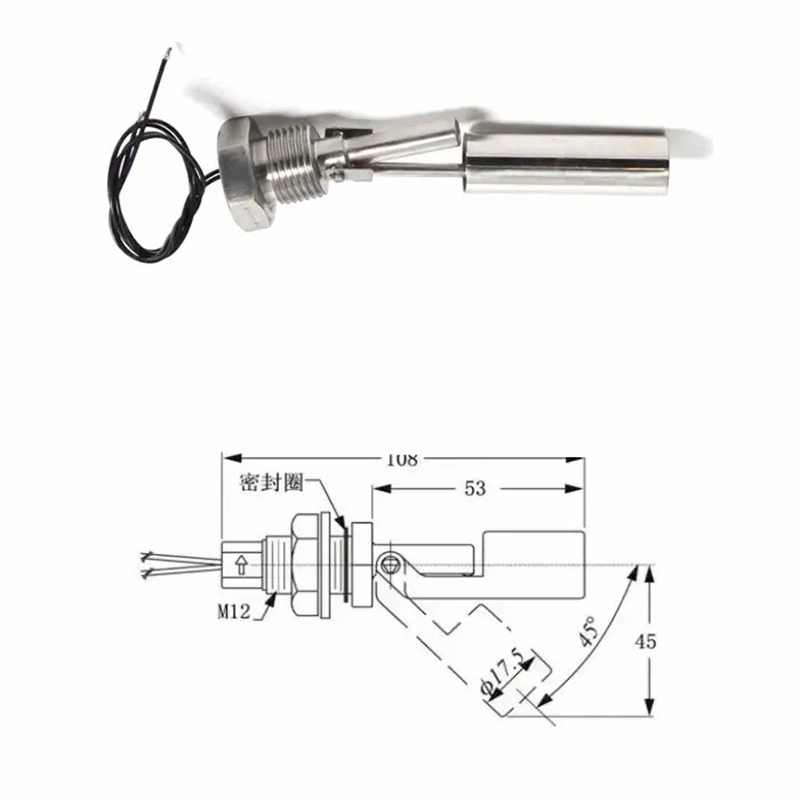

Product name: SQH109 Liquid level Switch
Contact Capacity: AC220V/1A DC24V/0.5A
Pressure rating: ≤1.5 Mpa
Output: SPST NO/NC
Temperature rating: -20~160°C
Protection rating: IP68
Material: SUS304/SUS316L
Mounting type: 1/2″PF/PT(Customizable)
Cable length: 500±10mm
Installation: Horizontal
The SS304 water tank piggyback float level switch SQH109, meticulously crafted by Sanqiaohui, stands as a pinnacle of liquid level control technology. Constructed from premium stainless steel 304, this device boasts exceptional durability and resistance to corrosion, making it an ideal choice for a wide range of environments. Its core functionality revolves around the precise monitoring and regulation of water levels within tanks. The innovative piggyback float mechanism is finely tuned to detect even slight changes in water levels, enabling it to automatically trigger the pump to either start or stop. This automation is crucial in preventing common issues such as tank overflow or pump dry running, thereby ensuring efficient water management.
Designed with user convenience in mind, the SQH109 is remarkably easy to install and is compatible with various applications, including residential water systems, industrial processes, and agricultural irrigation schemes. Its robust construction coupled with its high reliability and stability makes it an indispensable tool for anyone looking to streamline their water level management practices. By integrating the SQH109 into their systems, users can enjoy peace of mind, knowing that their water management is both intelligent and hassle-free.
SQH109 stainless steel Water level switch 1/2NPT Liquid level switch Side Installation magnetic sensor fluid level sensor
SQH109 SUS304/316 stainless steel magnetic float type level switch electronic fluid level sensor water liquid level sensor
Product Attributes
Usage |
Level measurement |
Mounting Type |
1/2NPT M8 M10 M12 DN15 |
Description |
Horizontal Side installation fluid level switch |
Model Number |
SQH109 Liquid Level Switch |
Type |
Liquid Level Switch |
Series |
Liquid Level Switch |
Features |
Horizontal Side installation |
Place of Origin |
GUANGDONG |
Brand Name |
SANQIAOHUI |
Theory |
Magnetic Switch |
Output |
switch on off NO NC |
Description |
Liquid Level Switch |
Material |
Stainless steel SUS304/SUS316L |
Power Input |
AC220V/1A, 24 VDC/0.5A |
Operating Temperature |
-20℃~+120℃ |
Packaging Details |
factory package |
Port |
FOSHAN |
Supply Ability |
100 Piece/Pieces per Day |
Product Details
