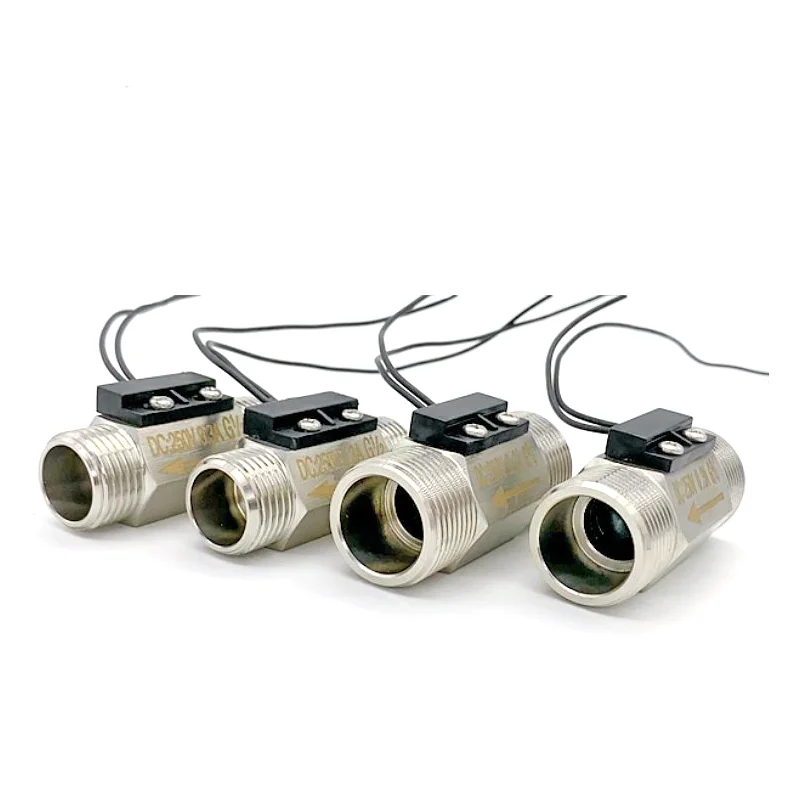

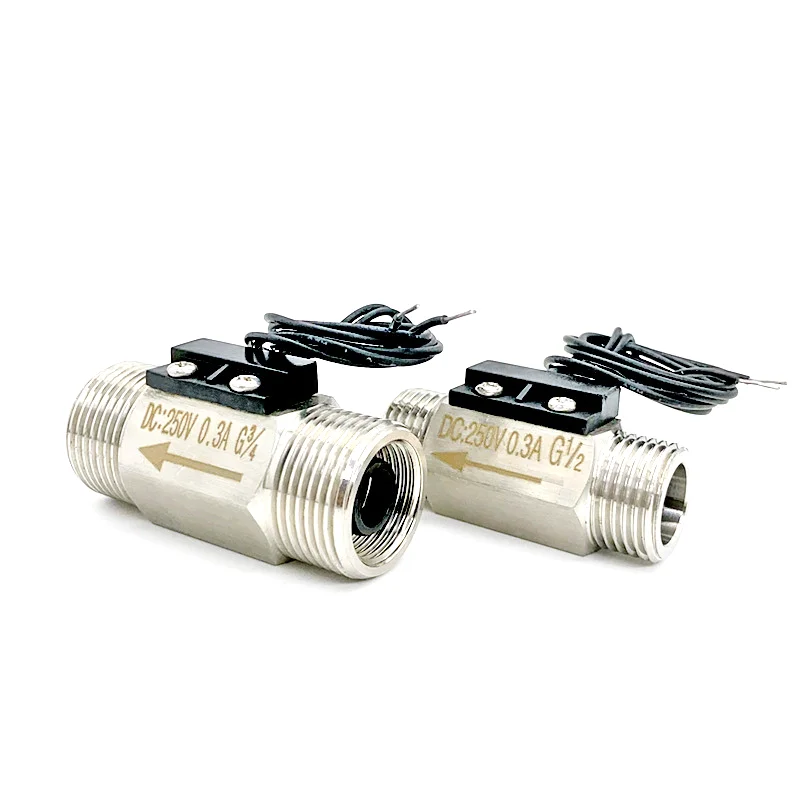

SANQIAOHUI Water Flow Switch for Chiller
SQH102 magnetic water flow sensor ，5VDC or 110VDC，switch signal output NO or NC，flow Range 1-100 L/min，Thread G1 G3/4 G1/2 G1/8，or 1”NPT 1/2NPT 1/4NPT，tainless steel materials..Install vertically or horizontally，for water heaters and wall-mounted boilers, coffee machines, CNC
5.0
Place of Origin:
China
MOQ:
1000
Brand Name:
SANQIAOHUI
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Voltage
5V 12VDC 110V 220VAC
Pressure performance/max
1.7MPa
Power
10W
Thread
G1/2 G3/4 G1"
Accuracy
3%
Output
Switch NO NC
Max pressure
1.75MPa
Installation
vertically or horizontally
Flow Range
1.2-60L/Min
Operating Temperature
0-60℃
Material
Stainless Steel SUS304 SUS316
Brand Name
SANQIAOHUI
Product Description
-
Product Name Water flow Switch sensor Material Stainless Steel SUS304 SUS316 Pipe Size G1/2 G3/4 G1"Thread Flow Range 1-60 L/Min Voltage 12VDC 220VAC Switching power 10W Output Switch NO NC Pressure performance 0.05-1.75MPa Operating Temperature 0-60℃
